Sol-Icon Two Sided PIR Solar Path Light

Description

A robust, two-sided solar powered path light from Lumena with a high output of 2000 lumens and multiple mounting options.

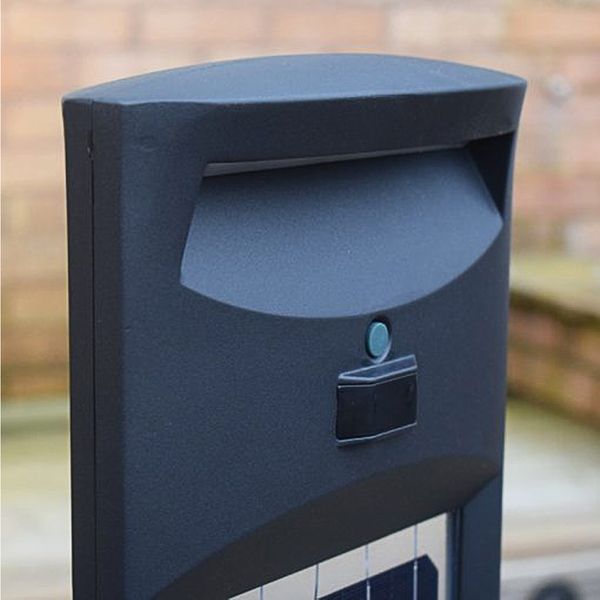

This slimline design light has PIR sensors on both sides which are triggered individually to illuminate either side of the light. Each side is made up of 10W long life LEDs with a high output of 1000 lumens in Daylight White colour temperature (6000K).

A control button can be found on both sides of the light, enabling the user to choose between three modes:

• PIR Mode: Full brightness when PIR triggered, then returns to 15% brightness after 20 seconds of no movement

• Constant Light (dusk to dawn): Constant illumination at 50% brightness

• Off

Set in two layers of toughened glass, the monocrystalline solar panel is extremely robust and has an IK Rating of IK08. As the sun moves around the light, the double-sided panel ensures sunlight will always be absorbed, allowing for optimum charging.

The panel charges the replaceable LiFePO4 lithium batteries, which power both sets of LEDs. The batteries will retain their charge for longer if only one side of the light is in use.

The light has multiple mounting options including a removeable, internal mount that secures directly onto any flat surface, a substantial ground spike or it can be mounted onto concrete with the supplied anchor bolts. For fixing the light into a concrete foundation, a root mounting kit is required, see product code LTS126/RMB. For public areas, protective button covers are available.

Please note: Although this light incorporates high quality technology, on particularly dull days the fittings may not charge to their highest capacity. As a result, illumination is not guaranteed throughout the entire night, but highly likely on sunny days.

• LEDs: SMD 3030 (40 pcs)

• Sensor detection range: 160-degree angle / 2-8 metre distance

• Illumination area: Approximately 3 metres each side

• Illumination time: Up to 4 nights on PIR mode (from full charge)

• LED expected life: Up to 50,000 hours

• Sensor: Light Sensor, PIR (Motion Sensor)

• IP rating: IP65

• Battery type: 6.4v 6AH 38.4wH LiFePO4 Lithium Battery (26650) – Replaceable (2000 fully charged / discharged cycles (up to approx. 5 year life) IC Driver)

• Solar panel: 9V / 3.5W Monocrystalline Silicone Solar Panel (11Wp front + 9Wp back) with expected life of 20 years

• Charging time: 10 hours of sunshine (to full charge)

• Working temperature: -20ºC – 60ºC

• Materials: Die-cast Aluminium, Tempered Glass

• Mounting options: 4-fin aluminium ground spike, Surface Mount

• Dimensions: 800 x 220 x 90mm / Solar Panel: 486 x 186m

• Weight: 4.5kg (excluding mounting accessories)

• Guarantee: 5 Years

• Waste disposal/recycling: Batteries: BPRN0843, Electrical: WEE/KC3440XY
