Zinc Plated Flush Cranked Hinge for 15-19mm Doors
£3.00 (£2.50 + VAT)
Flush cranked hinge in glossy zinc plated steel, suitable for 15mm – 19mm cupboard and cabinet doors. The flush hinge is ideal for static caravans and mobile homes. It features a fixed pin and non-mortice… Read more
Description

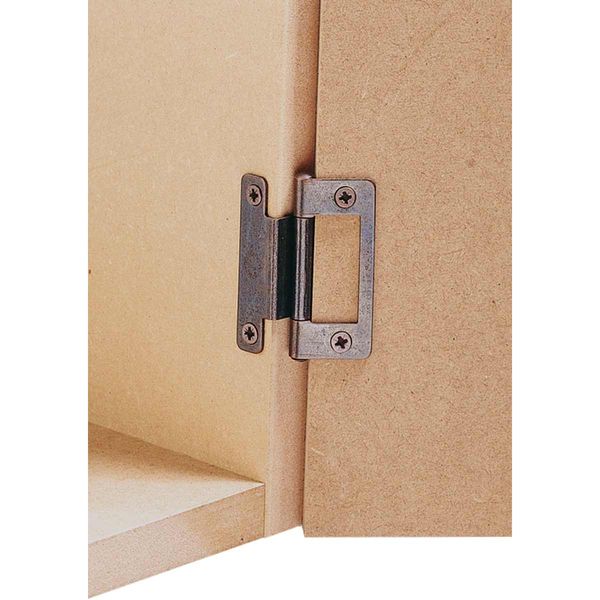

Flush cranked hinge in glossy zinc plated steel, suitable for 15mm – 19mm cupboard and cabinet doors. The flush hinge is ideal for static caravans and mobile homes. It features a fixed pin and non-mortice surface mounting with 4 fixing holes, as well as a rounded flange.
Please note: 4x 2.5mm diameter countersunk screws will be required to mount this hinge.
Additional information
| Primary Construction | Zinc Plated |
|---|---|

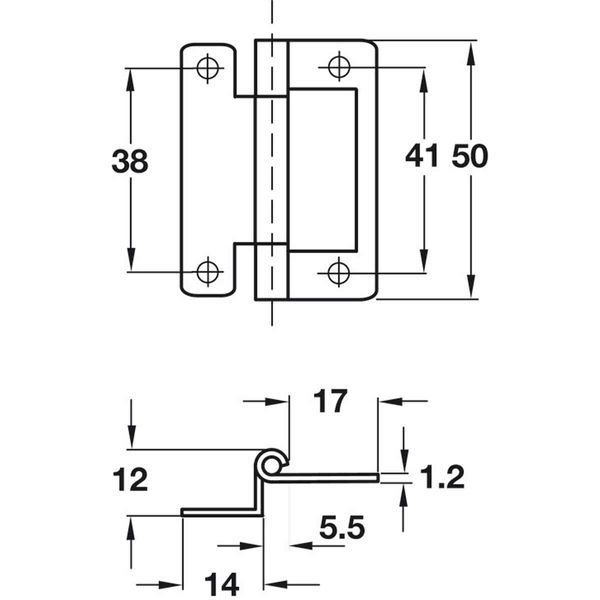

| Dimensions | Distance between mounting hole centres: 38mm & 41mm |
| Material | Zinc Plated Steel |
| Height Description | 50mm |
| Width | 36.5mm |
| Thickness | Flange: 1.2mm |
| Diameter Description | Knuckle: 5.5mm |
